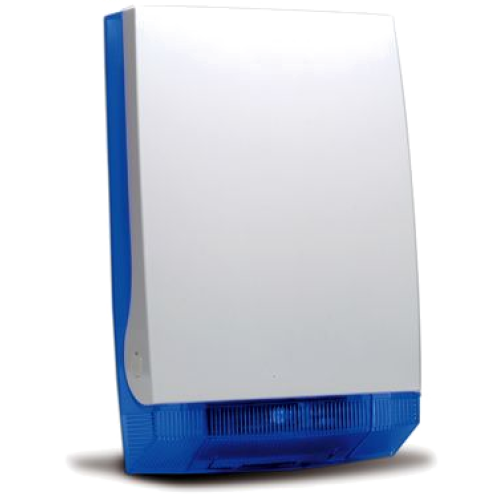

CROW FW2-NEPTUNE wireless outdoor sounder
- Brand: Crow
- Product Code: FW2-SIREXT
- Availability: Discontinued
Two Way Wireless Ultra Slim Outdoor Sounder
The FW2-Neptune is a wireless outdoor sounder combining high performance reliability, fast cable free installation and elegant design.
The FW2-Neptune is fully supervised, provides visual and audio notifications of intrusions, fire alarms, low battery voltage, and communication interferences.
The slim design of the FW2-Neptune makes it discreet but highly effective.
How can you use a wireless device or sensor with FLEXi SP3 smart alarm control panel?
By connecting a TRIKDIS RF-SH wireless expander interface you can use the "classic" wired alarm system as a hybrid or wireless. Comes handy when you have no option to lay wires and need wireless sensors or other equipment.
Communication
Transmission Protocol, Encryption
Freewave2™ Two Way Protocol, Unique ID serial number – 24 bit
Event Transmission
Alarm, Tamper, Supervision, Low Battery
Detector specifications
Tamper Switch
NC
Supervision Time
Sync signal every 1 min
Technical data
Operating environment
-30°C - + 70°C
Power supply
9V÷15V DC or Battery 3.6V /14Ah Lithium or bot
Current consumption (nominal)
Standby: 110uA ±10uA@ Battery operation
20mA±2mA@12V DC operation
Current consumption (max)
Alarm: Average: 950mA @ Battery operation
Max: 1.8A peak@ Battery operation
Average: 200mA @ 12V DC operation
Max: 1.2A peak @ 12V DC operation
Size
310 mm x 205 mm x 75 mm
Weight
1,2 kg
Battery type
Soldered CR2016
output [LED]
Power LED (90 Lumens)
Battery Life
Up to 5 Years (Based on 2 min Piezo operation/month)
Modulation Type
GFSK
Frequency Band
868-869MHz
Range in open space
500m
REGULATORY APPROVALS
EN300220-2
EN300220-1
EN301489-3
EN301489-1
EN50130-4
EN61000-6-3
EN60950-1
EN50131-1
EN50130-5
EN50131-5-3
LED Indications
Flash LED during transmission (Arm/Disarm), alarm and low battery
Sound Pressure Level, frquency range
105dB, 2700 ± 500 Hz
Design, material
External Box: P.C. (3mm thick), IP 43 – Plastic PC with UV protection. Conformal coated circuit board
