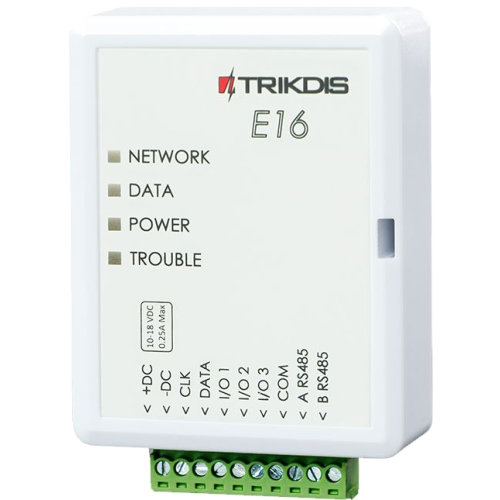

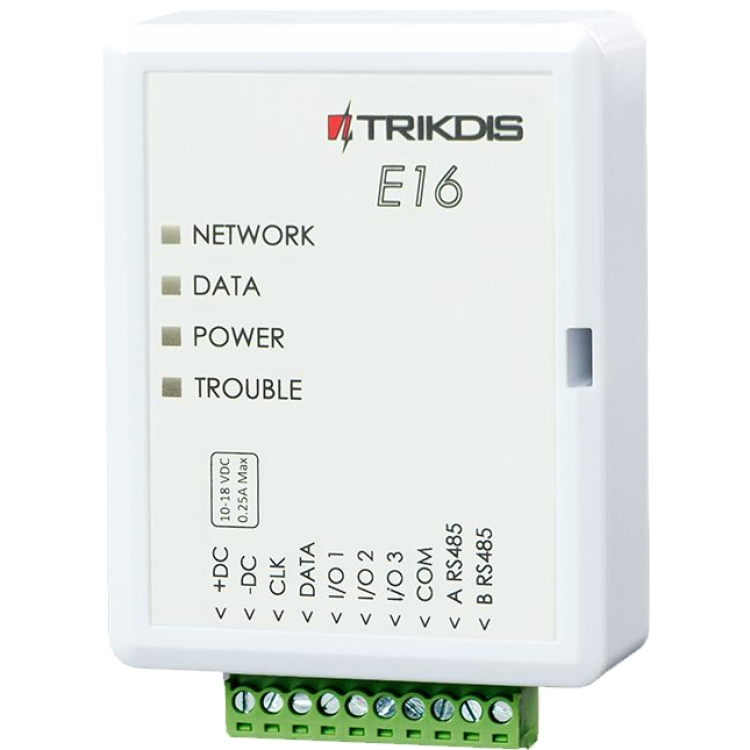

Trikdis E16 Ethernet Communicator - IP module

The Trikdis E16 Ethernet communicator works with Paradox, DSC and other manufacturers' alarm control panels, communicating directly via the data bus (DATA BUS) or serial port (SERIAL PORT).

Data is transmitted to the monitoring station and the user via the Protegus 2 mobile and web application over wired internet. Using the communicator, the alarm system can be remotely armed or disarmed from the owner's mobile app or browser, and connected devices can be controlled and monitored.

Trikdis communicators are excellent replacements for Paradox and DSC IP modules and SIM card communicators (e.g. Paradox IP150, IP150+, IP180, PCS250, PCS265LTE; DSC ENVISALINK4, TL / LE series).

What does Trikdis offer?

• Reliable operation
• Free Android, iPhone and web application
• Event monitoring
• Remote control (arming / disarming)
• Direct connection to the alarm control panel — for many compatible models
• IP and GSM/LTE communication in one device — dual path, multi-channel



You'll Need a Cable for Connection

If the E16, G16, GT, GT+, GET communicator is being connected to a Paradox alarm panel, you'll need a cable that can be connected to the CRP2 serial port as well.

If you're connecting it to a Texecom alarm panel, choose the CRP4 cable!

Connection to Data Bus or Serial Port, What Does This Mean?

In this case, the communicator is practically taught to understand the alarm panel's own language (one-way communication). Just like operators or other peripheral devices, the communicator sees events and will transmit the appropriate information according to the settings.

Direct Control

In the case of directly controllable panels, the communicator not only receives notifications from the panel but also a part of the functions available on the keypad becomes accessible (bidirectional communication).

• Activation / deactivation of the entire system or partition using a user code
• Detection of zone statuses
• Zone bypass
• Automatic mapping of partitions and zones

Don't see your system in the list?

The universal E16T, G16T, GT, GT+, GET communicators are compatible with any alarm control panel via TIP RING connection.

Main features:

• IP communicator working over Ethernet, compatible with popular alarm control panels from major manufacturers
• Uniquely connects not via TIP RING but via data bus or serial port — message reading and transmission takes less than a second
• Free Protegus 2 server — no fixed IP or dynamic DNS required

User features:

• The owner is notified of system events via the free Protegus 2 mobile and web application
• Push notifications and alarm sound for events and alerts
• Remote arming and disarming

Controllable outputs:

• 3 flexibly configurable contacts as input or output
• RS485 port for additional compatible expansion modules and devices
• Outputs controllable from the Protegus 2 application
• Remote control of connected devices (lighting, gate, ventilation, heating, irrigation, etc.)

Quick installation

• Settings can be saved to a file as a starting point for another device's configuration
• Quick and easy configuration via USB or remotely after first setup using TrikdisConfig or Protegus 2
• 2 access levels: Administrator, Installer

Monitoring station connection:

• The module transmits messages in Contact ID format to the monitoring station via IP
• Compatible with universal SIA DC-09 and SUR-GUARD TL150 receivers
• Automatically switches to backup channel if primary channel connection is lost
• Signalling to up to two monitoring stations, each with a backup channel
