Trikdis FLEXi SP3 – Smart Alarm Control Panel Introduction

3 min read

The Trikdis FLEXi SP3: smart alarm control panel with integrated communicator – versatile, fast and cost-effective.

Proud to introduce FLEXi SP3 - the alarm control panel that was built for this and maybe for the next decade from Trikdis. It combines the best features of the Trikdis communicators and control panels and meets every function that was demanded from the users and installers. The result is a versatile and flexible unit that allows this panel to be used both in intrusion alarm and automation installations.

Trikdis FLEXi SP3 – Smart Alarm Control Panel Introduction

Old system replacement

Replace any alarm system control panel without changing resistors in each sensor or device.

With FLEXi SP3 you can set the nominal value of the resistors in TrikdisConfig. This makes any old alarm system control panel replacement way more easier.

Trikdis FLEXi SP3 – Smart Alarm Control Panel Introduction 2

Reliable and fast communication

Thanks to the combination of integrated 2G, 4G, WiFi and Ethernet modems, you save precious seconds in case of an alarm.

Faster communication speed allows faster remote configuration and remote control.

Trikdis FLEXi SP3 – Smart Alarm Control Panel Introduction 3

Cost effective

The integrated communicator on the alarm control panel board saves a lot in the final price. WiFi & Ethernet saves on cellular data costs. Remote configuration allows installers to add users, change passwords and make other settings without visiting the site.

Trikdis FLEXi SP3 – Smart Alarm Control Panel Introduction 4

Versatile

FLEXi SP3 has 10 I / O contacts on board and can be expanded up to 32 INs (zones) and up to 16 OUTs. It is compatible with some Paradox and CROW keypads and can be extended with a wireless receiver to become a hybrid or wireless alarm system.

Trikdis FLEXi SP3 – Smart Alarm Control Panel Introduction 5

Control, automation, smart home

Contacts on FLEXi SP3 can be used as controllable outputs. By using sensors, it can be used to remote control or automate equipment around the house, like heating, garage and gate opening, irrigation, etc. It allows you to manage all your equipment in one place and in one app.

The FLEXi SP3 is available in 5 modem combinations

WiFi modem Ethernet modem WiFi + 2G GSM/GPRS modem WiFi + 4G LTE modem Ethernet + 4G LTE modem

  • WiFi and Ethernet provide lightning-fast access to your smartphone alarm system without the cost of a data connection
  • When the wired internet goes offline or there is a power outage and the router turns off, the device automatically switches to mobile network connection
  • You keep safe as the dual-path redundant connection provides the highest level, state of the art protection available.
  • Fast WiFi, Ethernet and 4G LTE networks are convenient for remote programming or firmware upgrades

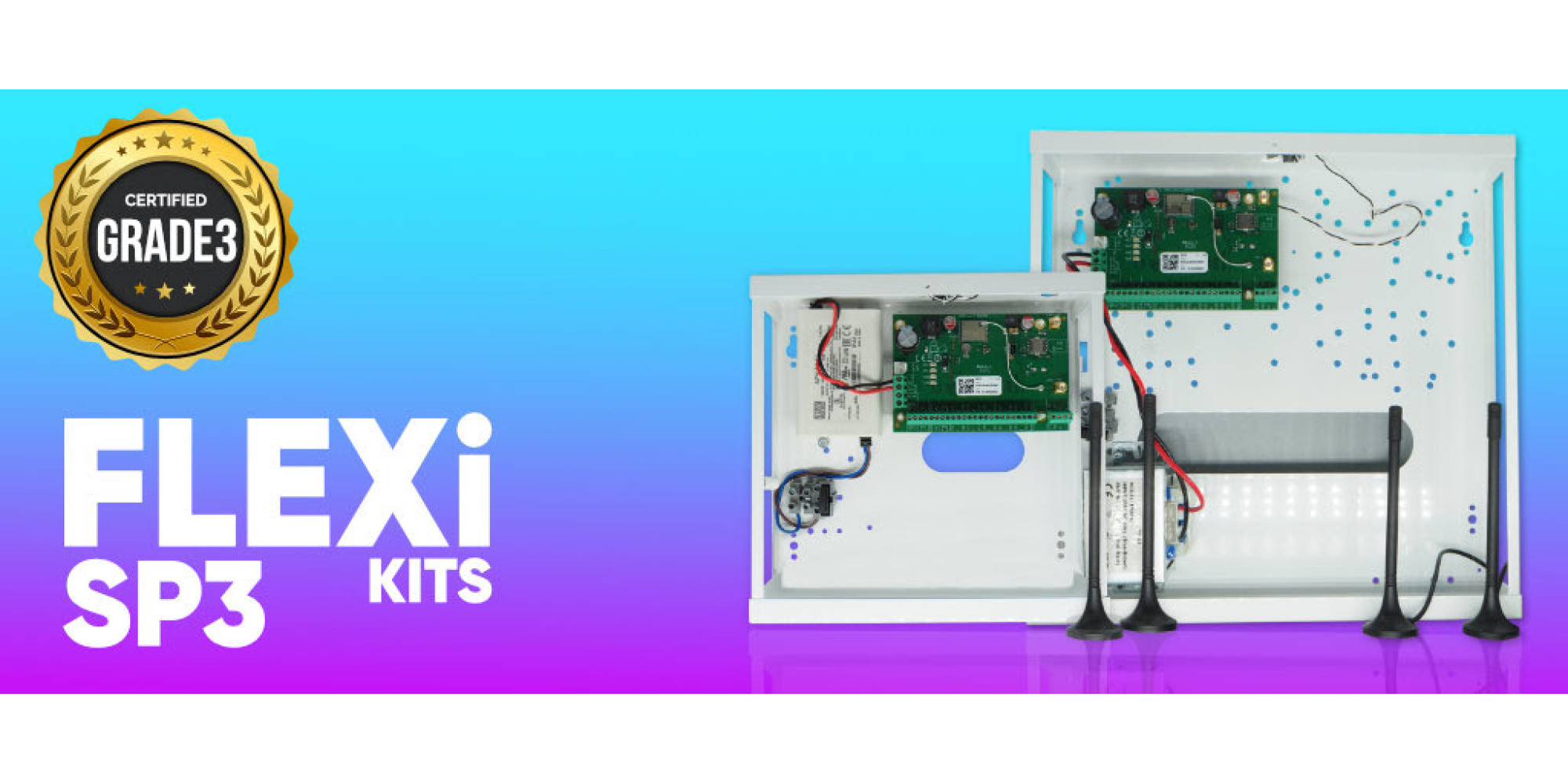

Faster and easier FLEXi SP3 installation with prepared metal box and power supply

The FLEXi SP3 KITs are designed for faster and easier installation. The sets include a metal box with tamper protection. The power supply is provided by a MEANWELL APV-35-24 PSU, for which a 230V mains connection point and a 3.15A fuse are available.All KITs are pre-wired and assembled to save you time.

The FLEXi SP3 KIT is available in 2 box sizes

K01 metal box for FLEXI SP3 KIT
  • K01 standard size metal box (285 x 280 x 80 mm)
  • MEANWELL apv-35-24 switching power supply
  • tamper switch
  • 230V connection point with fuse
K01 metal box for FLEXI SP3 KIT
  • K02 small size metal box (200 x 210 x 80 mm) (the Ethernet + 4G alarm system control panel does not fit in this box)
  • MEANWELL apv-35-24 switching power supply
  • tamper switch
  • 230V connection point with fuse
RF-LORA

Building a wireless or hybrid system?

The Trikdis RF-LORA wireless transceiver is the central element of the Trikdis wireless family. By connecting an RF-LORA to the Trikdis FLEXi SP3 control panel, you can build a wireless or hybrid (= mixed: wired and wireless) alarm system. These wireless devices can be sensors, sirens, panic buttons, or remote expansion modules with inputs (zones) or controllable outputs (PGMs), anything that might be needed for a smart alarm system.

Compatible devices with RF-LORA

  • IO8-LORA - wireless expander with 8 contact (all contact can be chosen as input or output)
  • IO-LORA - wireless expander with built in relay (mostly used for gates, doors, barriers, garage doors)
  • PB-LORA - wireless panic button (use up to 250 panic buttons in one system )
  • M4-MAG - wireless magnetic door contact
  • M4-PIR - wireless Indoor PIR
  • M4-SMK - wireless smoke detector
  • M4-SIREN - wireless outdoor siren
  • M4-EXTENDER - wireless signal repeater (range extender)
